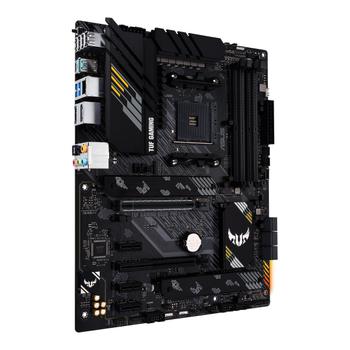

TUF GAMING B550-PRO

• AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series desktop processors
• Enhanced power solution: 12+2 DrMOS power stages, 8+4 pin ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
• Comprehensive cooling: VRM heatsink, PCH fanless heatsink,dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
• Next-gen connectivity: PCIe 4.0 M.2,Front USB Type-C®, USB 3.2 Gen 2 Type-A and Type-C® support
• Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
• Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
• Two-Way AI Noise Cancelation: Provides crystal-clear in-game voice communication

• AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 GSeries/ 3000 Series Desktop Processors

• AMD B550

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
• 4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Unbuffered Memory
• AMD RyzenTM 4000 GSeries Processors
• 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4866(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Unbuffered Memory
• Dual Channel Memory Architecture
• ECC Memory (ECC mode) support varies by CPU

• 1 x DisplayPort 1.2
• 1 x HDMI 2.1(4K@60HZ)

• Supports AMD 2Way CrossFireX Technology

• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
  • 1 x PCIe 4.0 x16 (x16 mode)
• AMD RyzenTM 4000 GSeries Processors
  • 1 x PCIe 3.0 x16 (x16 mode)
• AMD B550 Chipset
  • 1 x PCIe 3.0 x16 (x4 mode)
  • 3 x PCIe 3.0 x1

• Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
• AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :
  • 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• AMD RyzenTM 4000 GSeries Processors :
  • 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
• AMD B550 Chipset :
  • 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
  • 6 x SATA 6Gb/s port(s),
  • Support Raid 0, 1, 10

• Realtek RTL8125B 2.5Gb Ethernet
• TUF LANGuard

• Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
  • Supports : Jackdetection, Multistreaming, Front Panel Jackretasking, up to 24Bit/192kHz playback
• Audio Feature :
  • Exclusive DTS Custom for GAMING Headsets.
  • Optical S/PDIF out port(s) at back panel
  • Audio cover
  • Audio Shielding
  • Dedicated audio PCB layers
  • Premium Japanese audio capacitors
  • Unique depop circuit

• Rear USB Port ( Total 8 )
  • 2 x USB 3.2 Gen 2 port(s)(1 x TypeA +1 x USB TypeC®)
  • 2 x USB 3.2 Gen 1 port(s)(2 x TypeA)
  • 4 x USB 2.0 port(s)(4 x TypeA)
• Front USB Port ( Total 7 )
  • 3 x USB 3.2 Gen 1 port(s)(2 x TypeA +1 x TypeC)
  • 4 x USB 2.0 port(s)(4 x TypeA)

• ASUS Exclusive Software
• Armoury Crate
  • Aura Creator
  • Aura Sync
  • TwoWay AI Noise Cancelation
• AI Suite 3
  • Performance And Power Saving Utility
• TurboV EVO
• EPU
• Digi+ VRM
• Fan Xpert 4
  • EZ update
• TUF GAMING CPUZ
• AI Charger
• ASUS Turbo LAN
• DAEMON Tools
• DTS Custom for GAMING Headsets
• Norton Antivirus software (Free Trial for 60 days)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• ASUS TUF PROTECTION
  • ASUS DIGI+ VRM (Digital power design with Dr. MOS)
  • ASUS Enhanced DRAM Overcurrent Protection
  • ASUS ESD Guards
  • TUF LANGuard
  • ASUS Overvoltage Protection
  • ASUS SafeSlot
  • ASUS StainlessSteel Back I/O
• ASUS QDesign
  • ASUS QDIMM
  • ASUS QLED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • ASUS QSlot
• ASUS Thermal Solution
  • Aluminum M.2 heatsink
• ASUS EZ DIY
  • BIOS FlashBack™ button
  • BIOS FlashBack™ LED
  • Procool
• AURA Sync
  • Standard RGB headers
  • Addressable Gen 2 RGB header

• 1 x DisplayPort
• 1 x HDMI
• 1 x LAN (2.5G) port(s)
• 2 x USB 3.2 Gen 2 (teal blue) (1 x TypeA+1 x USB TypeC®)
• 2 x USB 3.2 Gen 1 (blue) TypeA
• 4 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)
• 1 x Optical S/PDIF out
• 5 x Audio jack(s)
• 1 x BIOS FlashBack™ Button(s)

• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x AIO_PUMP connector
• 2 x Aura RGB Strip Headers
• 2 x Addressable Gen 2 header(s)
• 1 x USB 3.2 Gen 1 front panel TypeC™ connector
• 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 1 x M.2 with E key for WiFi module
• 1 x SPI TPM header
• 6 x SATA 6Gb/s connector(s)
• 1 x Thunderbolt header(s)
• 1 x 24pin EATX Power connector(s)
• 1 x 8pin ATX 12V Power connector(s)
• 1 x 4pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• 1 x System panel connector
• 1 x COM port header

• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)
• 1 x Supporting DVD
• 1 x TUF Gaming Sticker
• 1 x TUF Certification card(s)
• 1 x M.2 SSD screw package(s)
• 1 x M.2 Rubber Package(s)

• 256 Mb Flash ROM, UEFI AMI BIOS

• WOL by PXE

• Windows® 10 64bit

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
