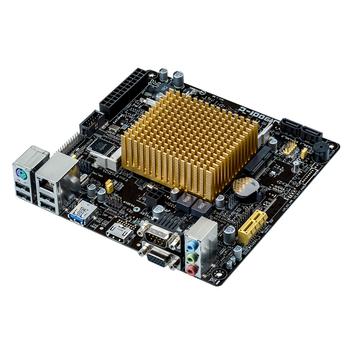

ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)
ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)
ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)
ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)
ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)
ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)
ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)
ASUS J1900I-C Mini Itx (90MB0JH0-M0EAYM)

ASUS

J1900I-C Mini Itx

Varenr.: 90MB0JH0-M0EAYM
EAN: 4716659734703
  • Processor-socket Indbygget CPU
  • M.2 Slot 0
  • Maksimal RAM-frekvens 1.333GHz
  • Max hukommelse understøttet 8GB
  • Form Factor mini ITX
Beskrivelse

J1900I-C


Compact and great value Intel Celeron® J1900 SoC CPU board with HDMI and USB 3.0


Features:

  • New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
  • USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
  • Network iControl: Real-time network bandwidth management
  • CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
  • AI Suite 3: One-stop access to innovative ASUS features


Specifications:

CPU
  • Intel® Celeron® Quad-Core J1900 SoC onboard Processors
Memory
  • 2 x SO-DIMM, Max. 8GB, DDR3L 1333 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
Graphic
  • Integrated Graphics Processor
  • Multi-VGA output support : HDMI/RGB ports
    • Supports HDMI with max. resolution 1920 x 1080 @ 60 Hz
    • Supports RGB with max. resolution 2560 x 1600 @ 60 Hz
  • Maximum shared memory of 512 MB
  • Supports DirectX 11
Expansion Slots
  • 1 x PCIe 2.0 x1
  • 1 x mini-PCIe
Storage
  • Built-in Controller :
    • 2 x SATA 3Gb/s port(s), dark brown
    • Supports Intel® Smart Connect Technology
LAN
  • Realtek® RTL8111G, 1 x Gigabit LAN Controller(s)
Audio
  • Realtek® ALC887-VD 8-Channel High Definition Audio CODEC
    • Supports : Jack-detection, Front Panel Jack-retasking
USB Ports
  • Built-in Controller :
    • 1 x USB 3.1 Gen 1 port(s) (1 at back panel, blue)
  • Built-in Controller :
    • 6 x USB 2.0 port(s) (4 at back panel, 2 at mid-board)
Special Features
  • ASUS Exclusive Features :
    • AI Suite 3
    • Ai Charger
    • Anti-Surge
    • ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    • Network iControl
    • USB 3.0 Boost
  • ASUS Quiet Thermal Solution :
    • ASUS Fan Xpert
  • ASUS EZ DIY :
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 2
    • ASUS MyLogo 2
  • 100% All High-quality Conductive Polymer Capacitors
Operating System Support
  • Windows® 8.1
  • Windows® 8
  • Windows® 7
  • Please update your BIOS and drivers to the latest version to support Windows 7

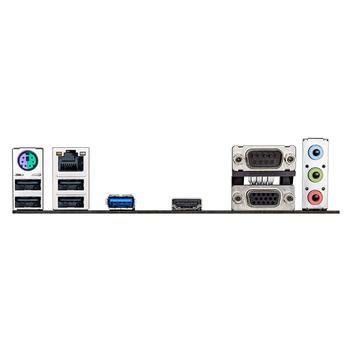

Back I/O Ports
  • 1 x PS/2 keyboard/mouse combo port(s)
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x LAN (RJ45) port(s)
  • 1 x USB 3.1 Gen 1
  • 4 x USB 2.0
  • 1 x COM port(s)
  • 3 x Audio jack(s)
Internal I/O Ports
  • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
  • 1 x TPM header
  • 1 x LPT header
  • 1 x COM port(s) connector(s)
  • 2 x SATA 3Gb/s connector(s)
  • 1 x CPU Fan connector(s)
  • 1 x Chassis Fan connector(s)
  • 1 x 24-pin EATX Power connector(s)
  • 1 x 4-pin ATX 12V Power connector(s)
  • 1 x Front panel audio connector(s) (AAFP)
  • 1 x System panel(s)
  • 1 x Clear CMOS jumper(s)
  • 1 x Buzzer
Accessories
  • User's manual
  • I/O Shield
  • 2 x SATA 3Gb/s cable(s)
BIOS
  • 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
  • WfM 2.0, DMI 2.0, WOL by PME, PXE
Support Disc
  • Drivers
  • ASUS Utilities
  • EZ Update
  • Anti-virus software (OEM version)
Form Factor
  • Mini ITX Form Factor
  • 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
