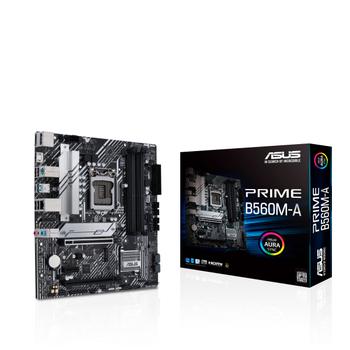

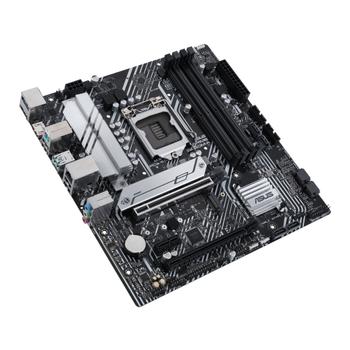

PRIME B560M-A MATX+GLN+U3.2+M2 SATA6+4XDDR4 CPNT

PRIME B560M-A

• Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors
• Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
• Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• Memory overclocking: Support memory overclocking up to 5000 MHz
• ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability
• Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C®) and V-M.2 Key E slot for Wi-Fi

• Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® 14 nm CPU
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

• Intel® B560 Chipset

• Memory Channels:4DDR4 (Dual channel)
• Max Memory Size:128GB
• DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz NonECC, Unbuffered Memory
• Dual Channel Memory Architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II

• 1 x DisplayPort 1.4
• 2 x HDMI™ 2.0

• 1 x PCIe 4.0 x16 + 1 x PCIe 3.0 x16 (max. x4)
• Intel® 11th &10th Gen Processors
  • 1 x PCIe 4.0/3.0 x16 slot(s)
  • Intel® 11th Gen processors support PCIe 4.0 x16
  • Intel®10th Gen processors support PCIe 3.0 x16
• Intel® B560 Chipset
  • 1 x PCIe 3.0 x16 slot (supports x4 mode)
  • 1 x PCIe 3.0 x1 slots

• Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• Intel®11th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
• Intel® B560 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 6 x SATA 6Gb/s ports

• 1 x Intel® I219V 1Gb Ethernet
• ASUS LANGuard

• VM.2 slot only (Key E, CNVi & PCIe)

• Rear USB:Total 6 ports
  • 2 x USB 3.2 Gen 2 port(s) (1 x TypeA + 1 x USB TypeC®)
  • 4 x USB 2.0 port(s) (4 x TypeA)
• Front USB:Total 7 ports
  • 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
  • 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports

• ALC887/897
  • Supports: Jackdetection, Multistreaming, Front Panel Jackretasking
  • Supports up to 24Bit/192 kHz playback
• Audio Features
  • Audio Shielding
  • Premium Japanese audio capacitors
  • Dedicated audio PCB layers

• 2 x USB 3.2 Gen 2 port(s) (1 x TypeA, 1 x USB TypeC®)
• 4 x USB 2.0 port(s) (4 x TypeA)
• 1 x DisplayPort
• 2 x HDMI™ port
• 1 x Intel® I219V 1Gb Ethernet port
• 1 x VM.2 slot (Key E)
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

• Fan and Cooling related
  • 1 x 4pin CPU Fan header(s)
  • 1 x 4pin CPU OPT Fan header(s)
  • 2 x 4pin Chassis Fan header(s)
• Power related
  • 1 x 24pin Main Power connector
  • 1 x 8pin +12V Power connector
• Storage related
  • 2 x M.2 slots (Key M)
  • 6 x SATA 6Gb/s ports
• USB
  • 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports
  • 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
  • 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
• Miscellaneous
  • 2 x AURA Addressable Gen 2 header(s)
  • 2 x AURA RGB header(s)
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x LPT header
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (141pin)
  • 1 x 203 pin System Panel header with Chassis intrude function

• ASUS 5X PROTECTION III
  • DIGI+ VRM
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • SafeSlot Core+
  • StainlessSteel Back I/O
• ASUS QDesign
  • QDIMM
  • QLED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
  • QSlot
• ASUS Thermal Solution
  • Flexible M.2 heatsink
  • VRM heatsink design
• AURA Sync
  • AURA RGB header(s)
  • Addressable Gen 2 RGB header(s)

• ASUS Exclusive Software
  • Armoury Crate
    • AURA Creator
    • AURA Sync
  • AI Suite 3
• Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • Digi+ VRM
  • Fan Xpert 2+
  • EZ update
  • ASUS CPUZ
  • AI Charger
  • DAEMON Tools
  • Norton Antivirus software (Free Trial version)
  • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

• 128 Mb Flash ROM, UEFI AMI BIOS

• WOL by PME, PXE

• Cables
  • 2 x SATA 6Gb/s cables
• Miscellaneous
  • 1 x M.2 Rubber Package(s)
  • 1 x M.2 SSD screw package(s)
  • 1 x Vertical M.2 Key E bracket set
• Installation Media
  • 1 x Support DVD
• Documentation
  • 1 x User manual

• Windows 10 64bit

• microATX
• 24.4cm x 23.4cm
