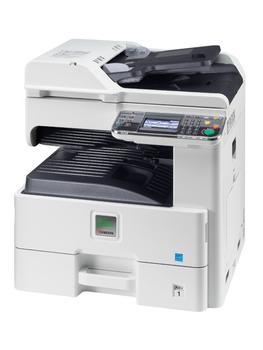

Mono Laserprinter FS-6530MFP

FS-6530MFP

• Up to 30/15 pages A4/A3 per minute
• Time to first copy: 9.2 seconds or less
• Professional print, copy, colour scan and fax functionality
• Paper capacity up to 1,600 sheets and a range of paper-handling options
• Easy to install and operate
• Easy to use colour touch panel with wizard-style navigation
• Low noise emissions, 0.9 W low power in sleep-mode
• Compact, 360° all-round stylish design to match any office
• Long-life components provide unprecedented efficiency and reliability
• HyPAS™ solution platform enables powerful customizations

• General type Monochrome multifunctional for A4/ A3 format
• Technology KYOCERA ECOSYS, Mono Laser, HyPAS™ solution platform
• Engine speed Up to 30/15 pages A4/A3 per minute (print/copy)
• Resolution 600 x 600 dpi (print), 600 x 600 dpi (scan/copy)
• Warm-up time 20 seconds or less
• Time to first print Approx. 8 seconds or less
• Time to first copy Approx. 9.2 seconds or less (DP), 7.8 seconds or less (Platen Cover)
• Dimensions (W x D x H) 590x590x694 mm (Dimensions with document processor)
• Weight Approx. 52.2 kg including toner container
• Power consumption Sleep-mode: 0.9 W, Ready-mode: 114 W, Copying/Printing: 530 W
• Power source AC 220 ~ 240 V, 50/60 Hz
• Noise (ISO 7779) Copying/Printing: 47.1 dB(A), Stand-by: 27.1 dB(A)
• Safety standards TÜV/GS, CE - This product is manufactured according to ISO 9001 quality standard and ISO 14001 environmental standard.
• General memory 1024 MB, max. 2,048 MB

• Input capacity 100-sheet multi-purpose tray, 45–256 g/m² (52–163 g/m² for larger than A4/Letter size), A3, A4, A5, A6, B5, Letter, Legal, Folio, envelopes, Custom (98 x 148 to 297 x 432 mm) 500-sheet universal paper cassette, 60–163 g/m², A3, A4, A5, B5, Letter, Legal, Folio
• Max. input capacity with options 1,600 sheets
• Duplex unit Duplex as standard supports 60–163 g/m²
• Max. output capacity Max. 300 sheets: 250 sheets face-down (main tray), plus 50 sheets (job separator tray)
• Document processor Reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140 x 182 to 297 x 432mm)
• General paper handling All paper capacities quoted are based on a paper thickness of max. 0.11 mm. Please use paper recommended by KYOCERA under normal environmental conditions.

• Processor PowerPC464 - 800 MHz
• Controller language PRESCRIBE IIe
• Emulations PCL 6 (5e/XL), KPDL3 (Postscript 3 compatible), PDF Direct print, XPS Direct print
• Fonts 93 outline fonts (PCL 6, KPDL3) + 8 (Windows Vista), 1 Bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
• Integrated Accounting 100 department codes
• Features Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, Private Print
• Standard Interfaces USB 2.0 (Hi-Speed), USB Host 2.0, Fast Ethernet 10/100/1000Base-TX, slot for optional print server, slot for optional CompactFlash®-Card
• Resolution 600 x 600 dpi
• Applicable OS All current Windows operating systems, Mac OS X Version 10.4 or higher, UNIX LINUX, as well as other operating systems on request

• Copy resolution 600 x 600 dpi
• Max. original size A3/Ledger
• Digital copy features Scan-once-copy-many, electronic sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through
• Exposure modes Auto, manual: 7 steps
• Preset magnification ratios 5 Reductions/5 Enlargements
• Zoom range 25 - 400 % in 1% steps
• Continuous copy 1 - 999
• Image adjustments Text, Photo, Text + Photo, Graphic/Map, Copy/Printout

• Compression format MMR /JPEG
• File type PDF, PDF/A, JPG, TIFF, XPS
• Scan features Colour Scan integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once
• Original recognition Text, photo, text + photo, optimized for OCR
• Max. scan size A3/Ledger
• Scan functionalities Scan-to-email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Network TWAIN, WIA, WSD scan
• Scan resolution 200 dpi, 300 dpi, 400 dpi, 600 dpi (256 greyscales per colour)
• Scan speed 40 ipm (300 dpi, A4, b/w), 20 ipm (300 dpi, A4, colour)

• Compatibility ITU-T Super G3
• Modem speed Max. 33.6 kbps
• Scanning speed 2.0 seconds (Quick Scanning, Bitmap)
• Transmission speed Less than 3 sec.
• Scanning density Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales
• Max. original size A3/Ledger
• Compression method JBIG, MMR, MR, MH
• Fax features Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

• Standard interface USB 2.0 (Hi-Speed), USB Host 2.0, Fast Ethernet 10/100/1000Base-TX, slot for optional print server, slot for optional CompactFlash®-Card
