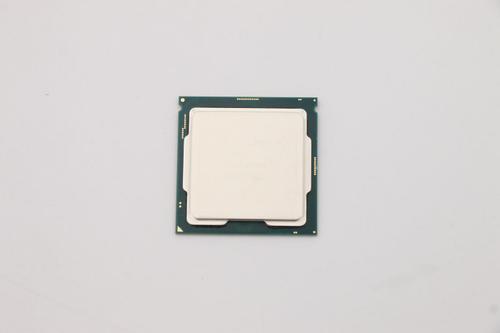

Intel i5-9400F 2.9GHz 6C 9M 65

Intel® Core™ i5-9400F Processor

• Product Collection 9th Generation Intel® Core™ i5 Processors
• Code Name Products formerly Coffee Lake
• Vertical Segment Desktop
• Processor Number i5-9400F
• Lithography 14 nm
• Use Conditions PC/Client/Tablet

• # of Cores 6
• # of Threads 6
• Processor Base Frequency 2.90 GHz
• Max Turbo Frequency 4.10 GHz
• Cache 9 MB Intel® Smart Cache
• Bus Speed 8 GT/s
• Intel® Turbo Boost Technology 2.0 Frequency 4.10 GHz
• TDP 65 W

• Max Memory Size (dependent on memory type) 128 GB
• Memory Types DDR4-2666
• Max # of Memory Channels 2
• Max Memory Bandwidth 41.6 GB/s
• ECC Memory Supported : No

• Scalability 1S Only
• PCI Express Revision 3.0
• PCI Express Configurations Up to 1x16, 2x8, 1x8+2x4
• Max # of PCI Express Lanes 16

• Sockets Supported FCLGA1151
• Max CPU Configuration 1
• Thermal Solution Specification PCG 2015C (65W)
• TJUNCTION 100°C
• Package Size 37.5mm x 37.5mm

• Intel® Optane™ Memory Supported : Yes
• Intel® Turbo Boost Technology 2.0
• Intel vPro® Platform Eligibility : No
• Intel® Hyper-Threading Technology : No
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
• Intel® Transactional Synchronization Extensions : No
• Intel® 64 : Yes
• Instruction Set 64-bit
• Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Thermal Monitoring Technologies : Yes
• Intel® Identity Protection Technology : Yes
• Intel® Stable Image Platform Program (SIPP) : No

• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® Software Guard Extensions (Intel® SGX) : Yes with Intel® ME
• Intel® Memory Protection Extensions (Intel® MPX) : Yes
• Intel® OS Guard : Yes
• Intel® Trusted Execution Technology : No
• Execute Disable Bit : Yes
• Intel® Boot Guard : Yes
